Since there have been a few modifications to the cars wiring it is difficult to resolve any electrical problems using the factory wiring schematic. The following diagrams document the current status of the vehicle (primarily for my reference).

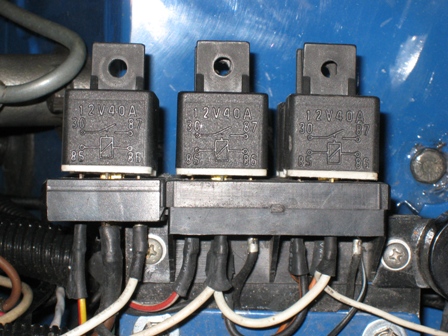

Main relays have been updated to improve reliability
The EDIS spark unit is next to the fuse box

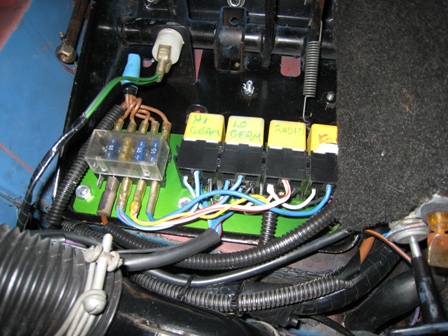

Underdash installation of additional lighting fusing

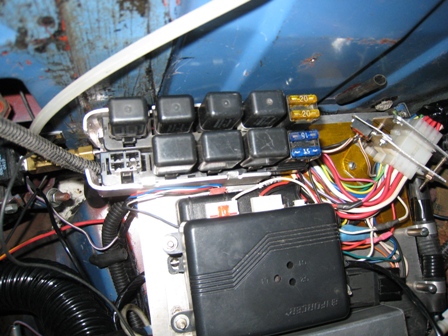

Fuses, relays and Megasquirt computer, passenger side, under dash
Megasquirt external wiring schematic
